Product Category: Packing Machine

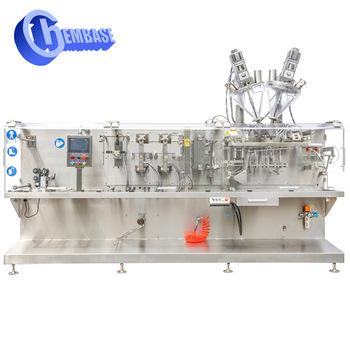

Product Name: CBF-180D Horizontal Automatic Pouch Packing Machine
Product picture:
Other:

Main Technical Parameter (If you are interested, please contact us send you the detailed plan)

Speed: Single pouch,60p/min;double pouches 80-120p/min
Single Pouch size: 80*100 mm(min), 180*220 mm(max)
Double Pouch size: (60+60)*70 mm(min), (90+90)*220 mm (max)
Packing volumes: 400g(single pouch), 100g(double pouches)
Precision: ±1%
Roll OD: ≤∅ 500 mm
Roll ID: ∅70-80 mm
Power Source: three phase, AC 380V, 50HZ
Power: 5.5 KW
Weight: About 2500Kg
Dimension: 3495*1000*1550mm(Dust-free +60)mm
