Product Category: Packing Machine
Product Name: CBF-180F Roll Film Forming Pouch Packing Machine

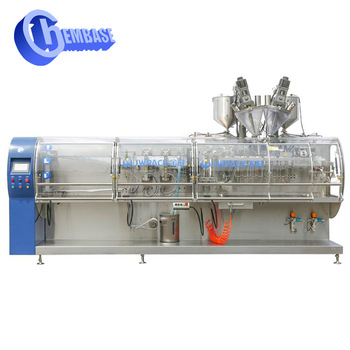

Product picture:
Other:
Main Technical Parameter (If you are interested, please contact us send you the detailed plan)
Capacity:
 60 pouches/min(Single Pouch),80-120pouches/min(Double Pouch)
(Actual production capacity depend on material and packaging size)
Pouch Size:
Single Pouch Width: 85-180 mm Height: 100-220 mm
Double Pouch Width: 60-90 mm Height: 100-220 mm
Volume:
300ml(single pouch);≤100×2=200ml(double pouch)
(Actual production capacity depend on material and packaging size)
Roll ID:
Φ70-80mm
Roll OD:
≤Φ500mm
Precision:
±1%(Actual precision depend on material stability)
Air Pressure:
0.6-0.8MPA
Power Source:
AC380V,50HZ
Power:
6.5 KW
Weight:
2700KG
External Dimension:
4176(duster pipe 60mm)×1000×1550 mm(L×W×H)
